Smart charging significantly reduces need for grid extension

Electric car chargers

Smart charging technology is an important part of the smart grid. The technology helps prevent grid overload when several electric vehicles are charged at the same time. People use the electricity produced from their own solar panels to charge their vehicles and thus capitalise on the fluctuations in electricity prices. Within the European INVADE project, GreenFlux has developed an algorithm that serves all of these goals simultaneously. In this project, GreenFlux cooperated with the Dutch organization ElaadNL and a consortium of 12 European parties.

The use of smart charging technology for charging electric vehicles has been around for quite some time now. The increasing use of energy from renewable sources (mainly wind and sun) along with the rising number of electric vehicles cause large-scale fluctuations in the energy network. This also leads to greater price variations in the energy markets, which indicates that it is becoming difficult to match the supply and demand of sustainable electricity generation within the energy system. The INVADE project demonstrated that smart charging can indubitably be used to overcome both challenges. Smart charging has been made even smarter by, on the one hand, improving the Open Smart Charging Protocol (OSCP) and, on the other hand, using the available fluctuating energy for charging electric vehicles.

The unique thing about this project is that smart charging has been applied on a large scale from a cloud system. — Lennart Verheijen, Head of Product Management at GreenFlux.

'No local hardware has been adjusted or installed at any pilot location; everything was controlled remotely. This makes the solution built here extremely scalable. GreenFlux is prepared for a future in which millions of cars make massive use of sustainable energy when it is available, while at the same time, we can limit the costs of grid extension to an absolute minimum,' added Lennart.

During the INVADE project, GreenFlux focused on two situations: households and offices. The third situation, public charging points, was investigated by ElaadNL. The first case had about fifty households with at least one electric car, a private charging station, and preferably also solar panels. Meanwhile, the office case concerned locations from a few chargers to a location with 98 charging stations. There were eight pilot locations amounting to 199 charging points altogether. An important prerequisite for the project was that EV riders would not be affected by smart charging and that it would be a scalable solution without modifications of the existing equipment.

Read: GreenFlux supplies the largest smart charging plaza in the Netherlands

At the moment it appears that the business case for offices is mainly in saving grid extension. By not charging all cars simultaneously, a cost saving of a quarter of a million euros could be achieved in one case due to smart charging eliminating the need to increase the building’s grid capacity. The annual additional network operator costs of 80,000 euros, which would have been necessary without smart charging, were redundant as a result of running the algorithms used by GreenFlux. The same savings can be achieved in households and offices, whereby the savings are made to the network operator.

The flexibility that electric cars can offer, especially if there are millions of them, is of great value to the energy system. The INVADE project has shown that if the solutions in this project are scaled up to a situation in which all cars will be electric, the total flexible power that electric cars can offer will be six to nine times greater than our current total power demand per day.

Download the whitepaper: EV Smart Charging: Optmising with Renewable Energy

Hans de Boer – CEO GreenFlux: 'European projects such as INVADE are very important to us. Thanks to these types of projects, we can continue to expand our global leading position in the field of smart charging.'

What makes the GreenFlux smart charging solution unique is that only one solution is necessary to prevent grid overload, while simultaneously anticipating on the energy markets. All existing systems only focus on one of those goals.

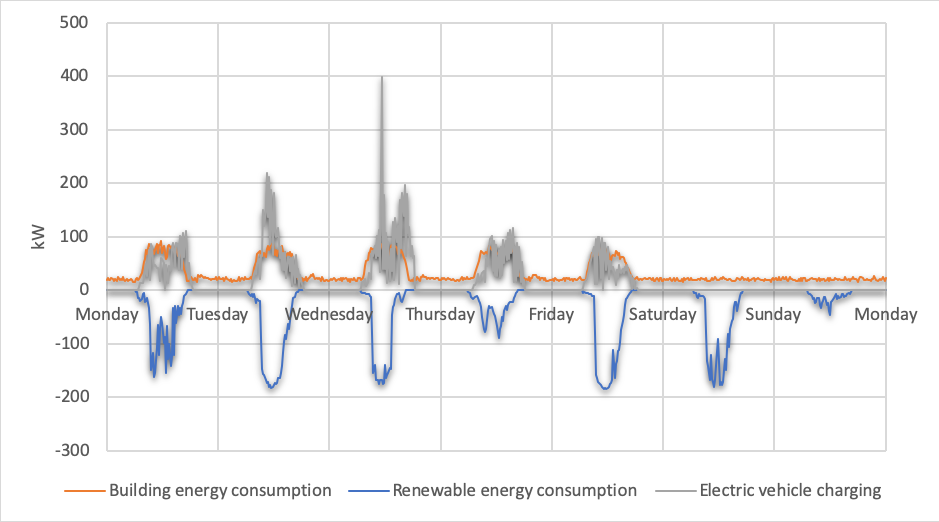

Line chart depicting building and EV electricity consumption and renewable energy production


Figure 1: Office situation without optimisation through which the generated solar energy and load requirement are not matched.

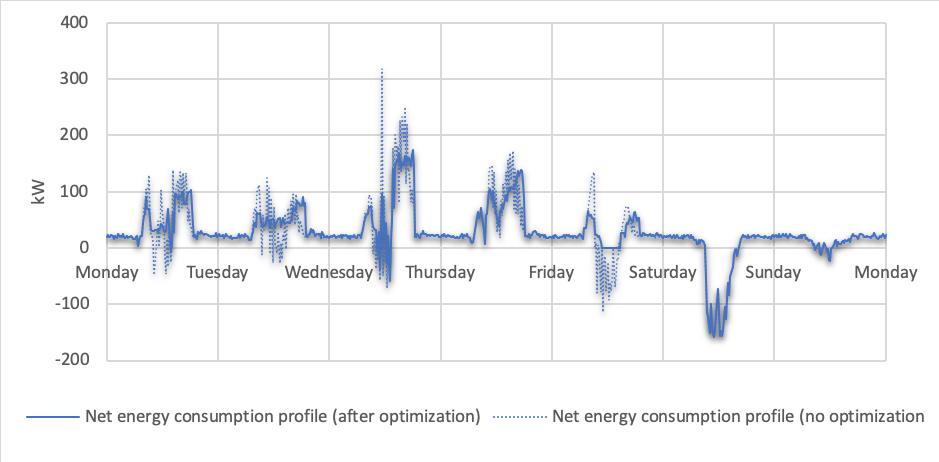

Office situation with optimisation through smart charging algorithms

Figure 2: Office situation with optimisation through smart charging algorithms, whereby the generated energy and the energy requirements of the office and electric cars are directly aligned.

Public charging points can also charge on wind and solar energy through smart algorithms

The Dutch pilot of INVADE also included two environments for smart charging at public charging points and an experimental environment in the Living Lab of ElaadNL. ElaadNL has conducted a test with 700 public charging stations (with more than 1,000 charging points) from EVnetNL. It was simulated that these are located in two neighbourhoods, one in Ede (Doesburgerbuurt) and one in Arnhem (Schuytgraaf-Noord). ElaadNL simulated a scenario in which there is 100 percent EV use in the future. Together with ElaadNL, work has also been done on an update of the Open Smart Charging Protocol (OSCP). ElaadNL has demonstrated that public charging points can also play an important role in reducing the load on the energy network. For more information, have a look at the ElaadNL website.

About INVADE

INVADE is a European subsidised project from the Horizon 2020 Research and Innovation program. The abbreviation INVADE is derived from the objective for the integration of electric vehicles and batteries in the distribution network for accessing distributed and centralized energy storage. The INVADE project started on January 1, 2017, and runs until the end of 2019. In the project, 12 partners work together at five test locations (the Netherlands, Norway, Germany, Spain and Bulgaria). Extensive information about the INVADE project can be found on the INVADE website.
